Double stud fittings for seat track and air cargo pallet connection, with or without rings. Ultimate loads from 3 200 to 4 200 daN. Zinc-plated steel. ISO 9788 version available.
Data sheet
Double stud fittings engage two adjacent positions of a seat track or air cargo pallet rail, giving a stronger anchor point than a single stud. They are the standard anchor format for ULD restraint and high-load lashing in air cargo.

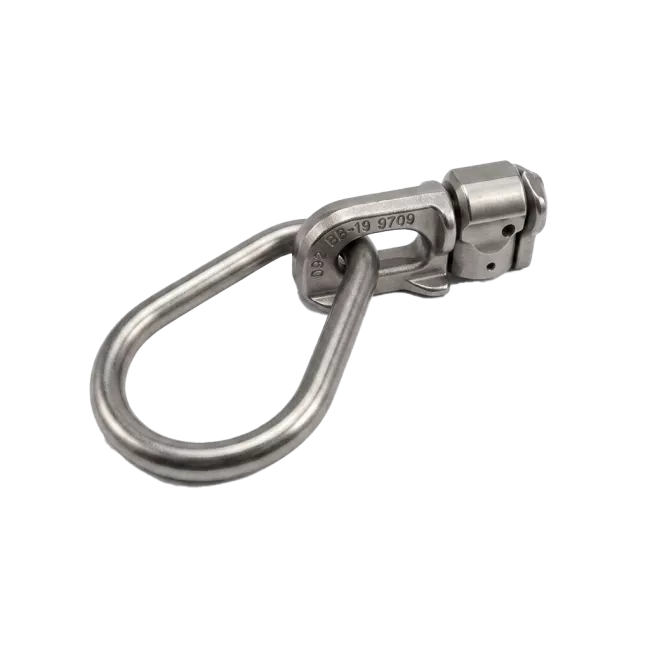

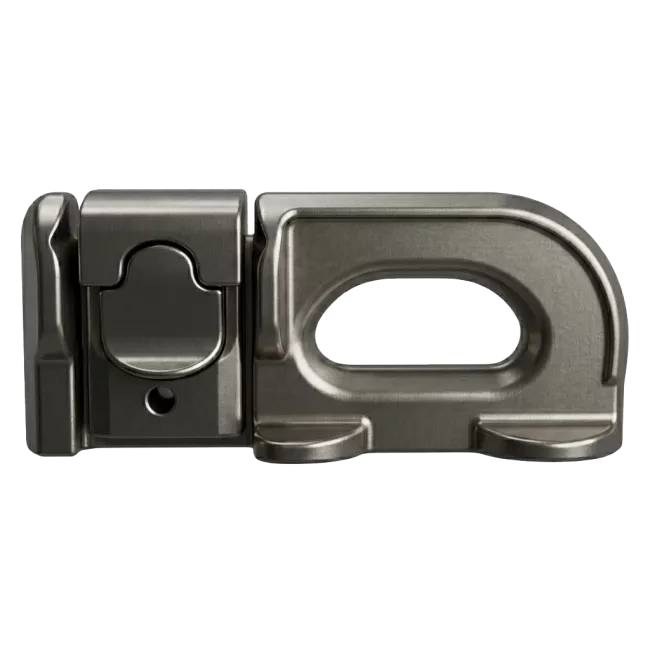

Four references cover the range: a plain double stud at 3 700 daN, a version with a pear-shaped ring at 3 200 daN compliant with ISO 9788, a version with an oval ring at 4 200 daN, and a version with a narrow oval ring at 3 300 daN. Construction is zinc-plated steel.
Stocked as spare parts for air cargo pallet nets and cabin restraint assemblies.
