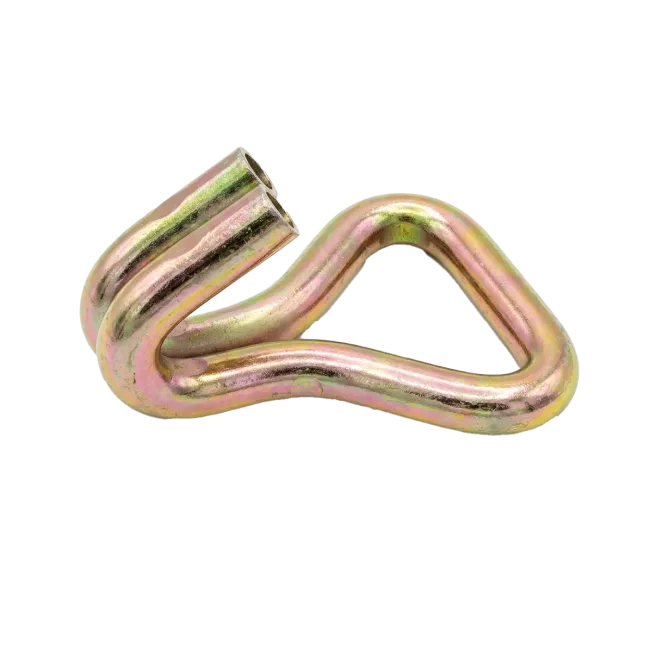

Double J hooks for 25 to 75 mm webbing, ultimate loads from 900 to 10 000 daN. Zinc-plated or stainless steel. Two J-shaped fingers with triangular webbing loop, latch version available.
Data sheet
Double J hooks are end fittings formed of two J-shaped wire fingers joined to a triangular webbing loop. The two fingers hook onto bars, floor fittings and anchor points, giving a stable engagement under load.
The range spans 25 to 75 mm webbing widths, with ultimate loads from 900 daN up to 10 000 daN on the 75 mm version. Construction is zinc-plated steel or stainless steel for corrosion resistance, with unit weights from 29 g to 830 g. A 50 mm version with a security latch is available to lock the hook on the anchor point under vibration.
Stocked as spare parts, compatible with the corresponding GPI Forankra webbing widths.
