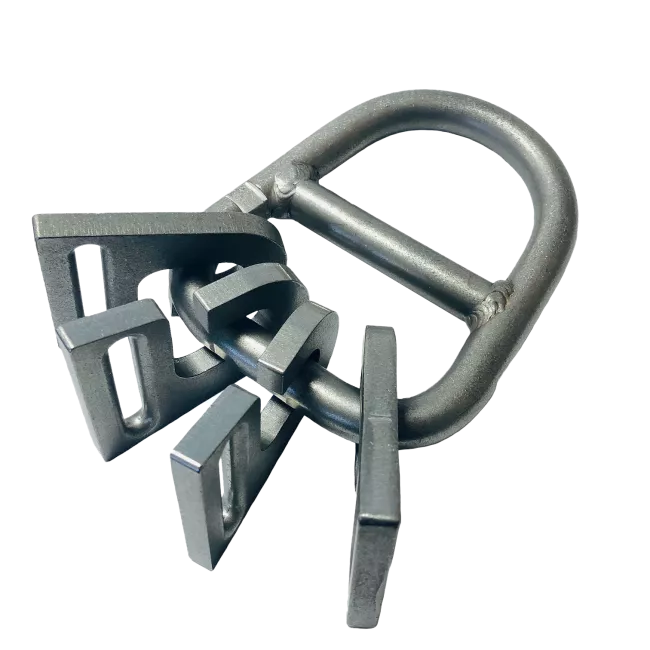

Stainless steel delta ring with 4 flat hooks, 10 000 daN ultimate load. Central gathering point for lifting net assemblies. One captive hook to prevent loss of parts.
Data sheet
The lifting ring is a stainless steel delta ring fitted with 4 flat hooks, used as the central gathering point of a lifting net assembly. Each hook is sewn to one corner of the lifting net, and the four straps converge on the delta ring to form the lifting attachment for the crane or hoist. One of the four hooks is captive on the ring, which prevents loss of a part during handling and storage.
Ultimate load is 10 000 daN. Construction is stainless steel for corrosion resistance, with a 130 mm ring and a total weight of 2 270 g.
Stocked as a spare part. Selection of lifting and load-bearing assemblies must follow the applicable rating and inspection requirements for the intended use.
