Data sheet
- Weight
- 528,7 g
- Length
- 160 mm
- Width
- 85 mm
- Thickness
- 14 mm
- Material
- Zinc plated steel

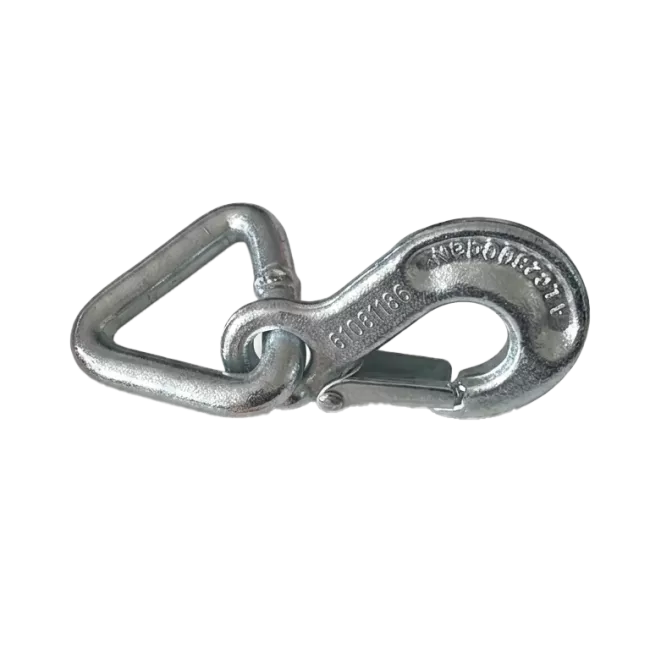

This end fitting carries a latched hook mounted on a triangular delta ring, the delta ring taking the 50 mm webbing and the latched hook engaging on anchor rings, floor fittings and other connection points. The latch closes back on the hook body once the connection is made, holding the assembly under load and vibration.
The fitting suits heavy restraint and lashing assemblies. Construction is zinc-plated steel for corrosion resistance, for a unit weight of 528.7 g.
Stocked as a spare part, compatible with 50 mm GPI Forankra webbing.
