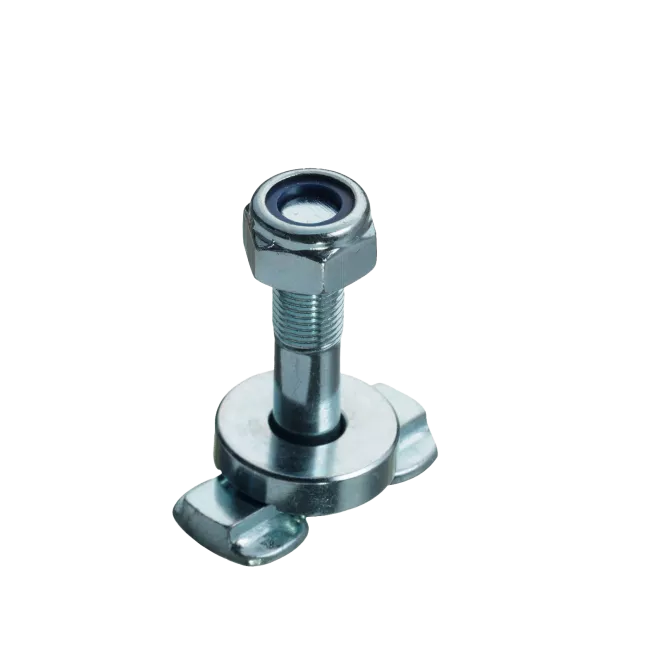

M10 threaded studs with nut for seat track and air cargo pallet connection. Clamping range from 0 to 52 mm. 2 000 daN vertical / 500 daN lateral. Tool-tightened version.
Data sheet
The threaded studs with nut connect equipment, seats and accessory rails to the seat track or to an air cargo pallet attachment, with a standard hex nut that is torqued with a wrench. They are the tool-tightened counterpart of the ergonomic-handle version, used in permanent or semi-permanent installations where calibrated torque is required.
All references use an M10 thread and provide 2 000 daN vertical (Z) and 500 daN lateral (X/Y) restraint capacity. Four clamping ranges cover the standard installations: 0-12 mm, 0-22 mm, 0-32 mm and 0-52 mm.
Construction is zinc-plated steel.
