Screw-gate quick links, ultimate loads from 850 to 2 000 daN. D-shape, oval and square shapes. Zinc-plated or stainless steel. Threaded-sleeve closure for restraint and rigging.
Data sheet
Quick links are reusable connectors with a screw-gate closure: a threaded sleeve runs along the gate to lock the link closed once a strap or ring is engaged. They replace permanent shackles where a connection has to be opened and re-closed in service.

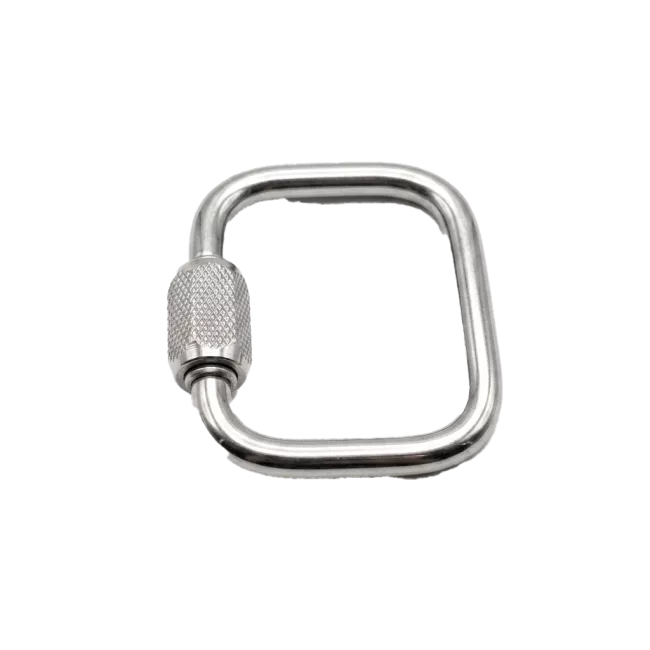

The range covers three shapes: D-shape links for the widest size offering, oval links for in-line tension work, and a square ring for parts that need a flat seating face. Ultimate loads run from 850 to 2 000 daN. Construction is zinc-plated steel for corrosion resistance, with stainless steel versions available on most references for marine and humid operating environments. Unit weights run from 15 to 58.6 g depending on size and shape.
Stocked as spare parts for restraint, tie-down and rigging assemblies.
