Flat hooks for 25 and 45 mm webbing, ultimate loads from 450 to 1 500 daN. Zinc-plated steel. Open-throat end fittings for cabin anchor rings and footman loops, retainer stud versions available.
Data sheet
Flat hooks are end fittings for restraint strap assemblies, connecting the webbing to cabin anchor rings, footman loops and floor fittings. The open-throat shape gives fast hook-on and hook-off in cabin and cargo operations, where speed of attachment matters.

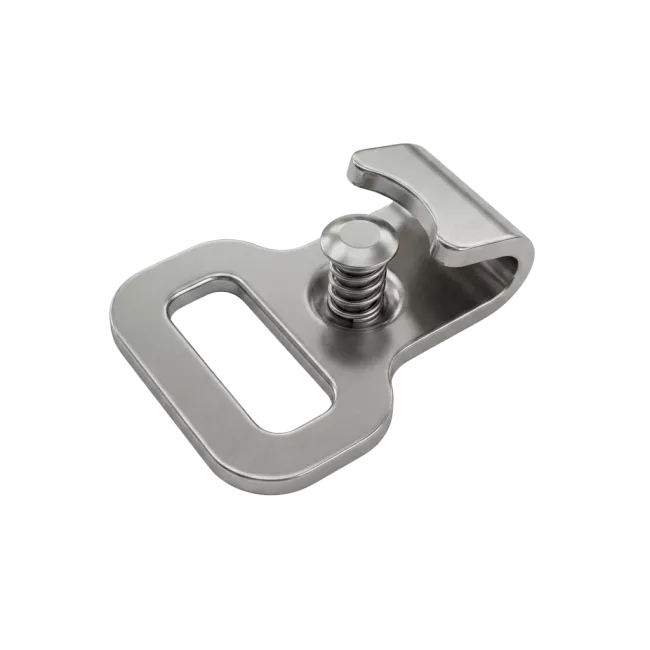

Two retainer-stud versions are available at 25 mm to lock the webbing in place once the hook is engaged: a spring-loaded stud at 1 500 daN and a standard stud at 1 000 daN. The range also covers a 25 mm light version at 450 daN and a 45 mm version at 1 500 daN.
Construction is zinc-plated steel for corrosion resistance, with unit weights from 24.5 to 166 g. Stocked as spare parts, compatible with the corresponding GPI Forankra webbing widths.
