Adjusting plates for 25 and 50 mm webbing, 2 500 daN ultimate load, zinc-plated steel. Length adjustment hardware for restraint and lashing assemblies.
Data sheet

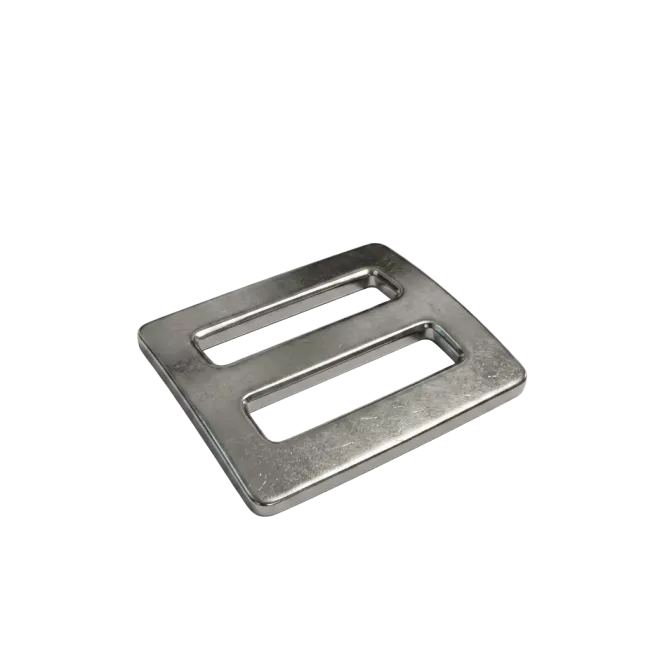

Adjusting plates are flat steel parts with internal slots that let the webbing fold back on itself and lock by friction, setting the strap length without a buckle. They are used where the assembly does not need a tensioning mechanism, just a fixed length adjustment.
Two sizes cover the range: 25 mm at 35.8 x 30.3 mm (3 mm thick, 18 g) and 50 mm at 74.6 x 45.6 mm (4 mm thick, 79.6 g). Ultimate load is 2 500 daN for both sizes. Construction is zinc-plated steel for corrosion resistance.
Stocked as spare parts, compatible with the corresponding GPI Forankra webbing widths.
