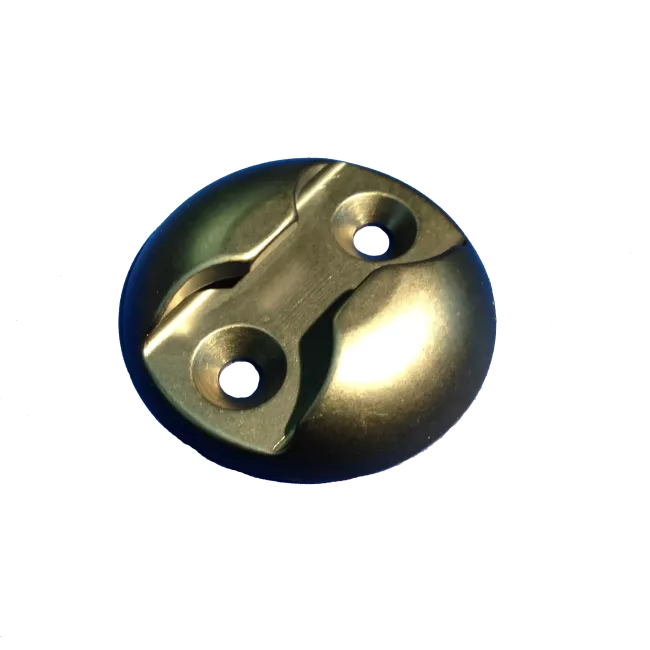

Aluminium anchor plate for single stud fittings, 1 800 daN ultimate load. Lightweight attachment point for cargo restraint assemblies.
Data sheet
This aluminium anchor plate provides a fixed attachment point for single stud fittings in cargo restraint assemblies. It is used to anchor straps and nets to the aircraft structure or to load platforms.
Ultimate load is 1 800 daN (4 050 lbs). The plate is machined from aluminium with a dark finish, measures 10.2 mm in thickness and weighs 20 g, keeping the added mass minimal in weight-sensitive installations.
Stocked as a spare part, compatible with single stud fittings across the restraint range.
