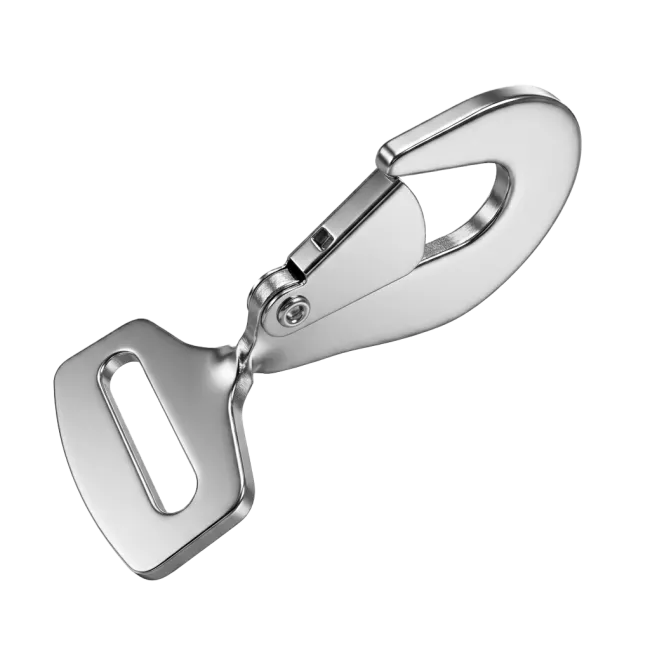

50 mm twisted snap hook, 5 000 daN ultimate load, zinc-plated steel. Hook body rotated 90° to the webbing slot for in-line strap orientation against the anchor point.
Data sheet
The 50 mm twisted snap hook is a heavy-duty end fitting for restraint strap assemblies. The hook body is rotated 90° relative to the webbing slot, so the strap lies flat against the airframe or load surface when the hook is engaged on an anchor point at a right angle to the strap run.
Ultimate load is 5 000 daN. Construction is zinc-plated steel for corrosion resistance, for a unit weight of 260 g. A hinged latch on rivet closes the hook once it is connected.
Stocked as a spare part, compatible with 50 mm GPI Forankra webbing.
